LIYI Salt Spray Test Chamber with 108L-1440L Capacity IP56 Protection and 0.5 Accuracy for Corrosion Testing

1
MOQ
LIYI Salt Spray Test Chamber with 108L-1440L Capacity IP56 Protection and 0.5 Accuracy for Corrosion Testing
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Precisione: 0,5
Energia: 580W
Classe di protezione: IP56
Voltaggio: 380 V, 220 V.
Quantità dello spruzzo: 1.0~2.0ml/80cm2/h
Condizione ambientale: Temperatura 20~40°C
Capacità della camera di prova: 108L~1440L
Intervallo di temperatura: NSS.ACSS 47℃±1℃/CASS 63℃±1℃
Dispositivo per l'aggiunta dell'acqua: Automatico
Gamma di pH: 6.5~7.2, 3.0~3.2
Dimensioni della camera di prova: Da 60*45*40 cm a 2000*1000*500 cm
Capacità massima del liquido: Da 15 litri a 40 litri
Alimentazione elettrica: CA 220 V, 10 A a CA 220 V, 30 A
Tipo di ugello di spruzzo: Principio di Bo Nute
Tipo di controller: Microcomputer digitale
Evidenziare:

108L-1440L Capacity Salt Spray Test Chamber

,

IP56 Protection Salt Spray Test Chamber

,

0.5 Accuracy Salt Spray Test Chamber
Informazioni di base
Luogo di origine: Guangdong, Cina
Termini di pagamento e spedizione
Descrizione di prodotto

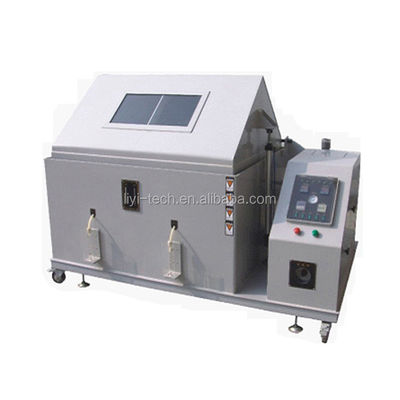

LIYI Environmental Salt Fog Testing Cabinet
The LIYI Salt Fog Testing Cabinet is designed for accelerated corrosion testing to evaluate the protective qualities of coatings on metal surfaces, including electroplating, anodizing, and painted finishes.
Product Description
The Liyi salt spray test machine determines the corrosion resistance of metal substrates and their protective coatings through standardized testing methods.
This accelerated corrosion test evaluates coating suitability by exposing samples to controlled salt fog conditions. Test duration varies based on the coating's corrosion resistance, with more durable coatings requiring longer exposure before showing signs of deterioration.
Key Features
  • Bo Nute Principle spray nozzle prevents salt crystallization while creating fine atomization
  • Digital microcomputer controller ensures precise temperature regulation
  • Comprehensive display shows temperature, humidity, pressure, spray capacity, and timing
  • Complies with international testing standards worldwide
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Design Standard GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L) 108L 270L 600L 750L 1000L
Temperature (Test Chamber) NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Temperature (Saturated Air Cylinder) NSS/ACSS: 47°C±1°C | CASS: 63°C±1°C
Test Chamber Size (L×W×D cm) 60×45×40 90×60×50 120×100×50 150×100×50 200×100×50
Max Capacity of Test Liquid (L) 15 25 40 40 40
Power AC220V,10A AC220V,15A AC220V,30A
Product Images
LIYI Salt Spray Test Chamber with 108L-1440L Capacity IP56 Protection and 0.5 Accuracy for Corrosion Testing 0 LIYI Salt Spray Test Chamber with 108L-1440L Capacity IP56 Protection and 0.5 Accuracy for Corrosion Testing 1 LIYI Salt Spray Test Chamber with 108L-1440L Capacity IP56 Protection and 0.5 Accuracy for Corrosion Testing 2 LIYI Salt Spray Test Chamber with 108L-1440L Capacity IP56 Protection and 0.5 Accuracy for Corrosion Testing 3
Availability
Selected models are maintained in stock for urgent purchase requirements.
Contact us for special offers and discounts
Frequently Asked Questions
1. Are you the manufacturer? What is your warranty and after-sales service policy?
Yes, we are a professional manufacturer of testing equipment. All machines come with a 12-month warranty from shipment date, extended to 14 months to account for sea transportation. We provide free maintenance during this period and offer technical support within 24-48 hours of problem identification.
2. What is your standard delivery time?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders receive priority handling.
3. Do you offer customization and OEM services?
Yes, we provide both standard and customized machines according to customer requirements, including OEM branding options.
4. How do I install and operate the machine?
Most machines ship fully assembled. We provide English operation videos and can assist with installation if required.
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd specializes in environmental testing equipment manufacturing. With production facilities in Dongguan and a service office in Kunshan, we serve customers in over 150 countries with advanced testing solutions for various industries.
