Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class

1
MOQ
Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Precisione: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Energia: 2KW
Classe di protezione: IP56
Voltaggio: 220 V, 380 V, 240 V, 110 V.
Temperatura della camera di prova: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Temperatura dell'aria satura: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Capacità della camera di prova: 108L~1000L
Display: Touch screen LCD dell'esposizione di colore
Dimensioni della camera di prova: 60*45*40 cm, 90*60*50 cm, 120*100*50 cm, 200*120*60 cm
Capacità massima del liquido: 15 l, 25 l, 40 l, 40 l
Volume esterno: 107*60*118 cm, 141*88*128 cm, 190*130*140 cm, 270*150*150 cm
Alimentazione elettrica: CA 220 V, 10 A, CA 220 V, 15 A, CA 220 V, 30 A
Modello: LY-609-60, LY-609-90, LY-609-120, LY-609-200
Standard di progettazione: GB/T10587-2006, GB/T10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Capacità della camera di prova (L): 108L, 270L, 600L, 1440L
Evidenziare:

108L~1000L Capacity Salt Spray Test Chamber

,

IP56 Protection Class Salt Spray Test Chamber

,

ASTM-B117 Corrosion Resistance Salt Spray Test Chamber
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: LIYI
Termini di pagamento e spedizione
Descrizione di prodotto
Liyi ASTM-B117 Corrosion Resistance Machine Spray Solar Panel Salt Mist Aging Testing Chamber

The Liyi salt spray test machine determines the corrosion resistance of iron metals or their inorganic/organic coatings, including electroplating, anodizing, conversion coatings, and paint finishes.

This accelerated corrosion testing chamber evaluates protective finishes by subjecting coated samples to corrosive conditions. The test duration varies based on the coating's corrosion resistance, with more durable coatings requiring longer testing periods before showing signs of oxidation.

Key Features
  • Evaluates corrosion resistance of metal coatings and finishes
  • Accelerated testing method for quality assessment
  • Multiple standard compliance (ASTM B117, GB/T, JIS, etc.)
  • Precise temperature control for different test types
  • Available in multiple chamber sizes for various testing needs
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-200
Design Standard GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L) 108L 270L 600L 1440L
Temperature (Test Chamber) NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Temperature (Saturated Air Cylinder) NSS/ACSS: 47°C±1°C | CASS: 63°C±1°C
Test Chamber Size (L×W×D cm) 60×45×40 90×60×50 120×100×50 200×120×60
Max Capacity of Test Liquid (L) 15 25 40 40
Outside Volume (L×W×D cm) 107×60×118 141×88×128 190×130×140 270×150×150
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A
Product Images

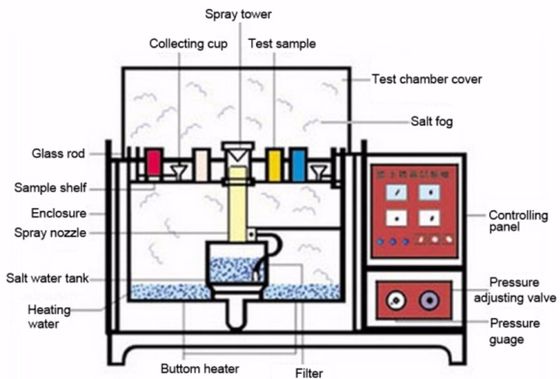

Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class 0

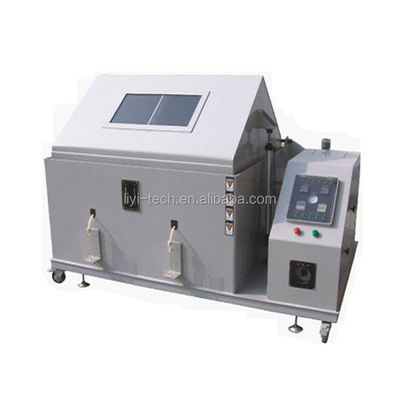

Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class 1

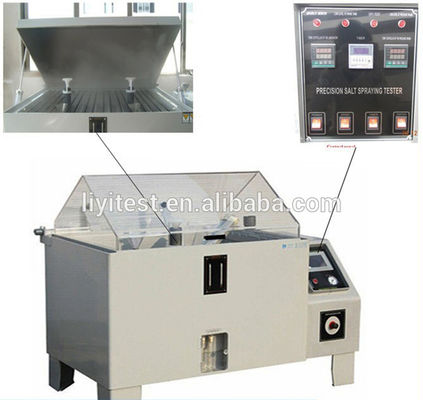

Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class 2

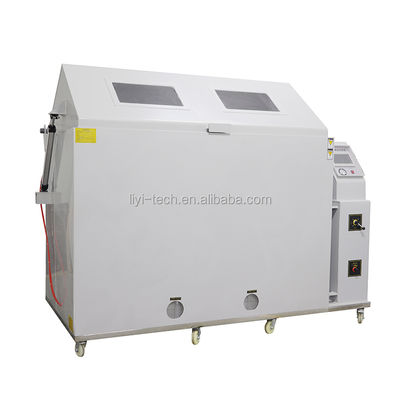

Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class 3
Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech manufacturing enterprise specializing in environmental testing equipment. With advanced technology, experienced personnel, and comprehensive quality management, we serve customers in over 150 countries.

Our product range includes environmental test chambers, material testing equipment, and customized solutions. Based in Dongguan, China's manufacturing hub, we maintain a satellite office in Kunshan to better serve our Eastern China customers.

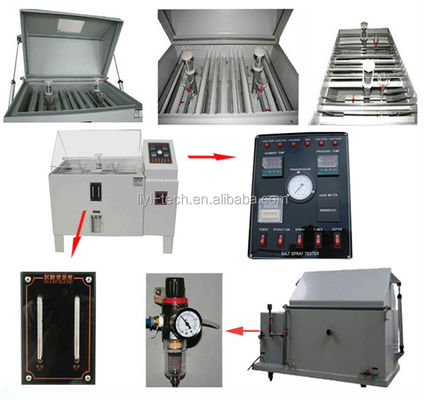

Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class 4
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer of testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer technical support via email or video call, with solutions typically provided within 24-48 hours.

2. What's the delivery time?

Standard machines are typically available from stock. For non-stock items, delivery takes 15-20 working days after deposit. We can expedite production for urgent orders.

3. Do you offer customization and OEM services?

Yes, we provide both standard and customized machines according to customer requirements, including OEM services with your logo on the equipment.

4. How do I install and use the machine?

Most machines are shipped fully assembled - just connect power to begin testing. We provide English operation videos and can assist with on-site installation when necessary.

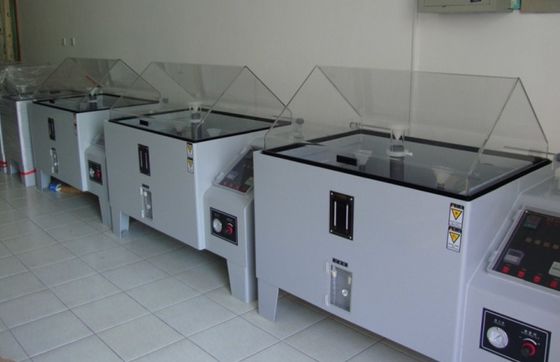

Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class 5
