Caratteristiche

Specificazioni

Precisione: ±0.5°C ±2.5%UR

Energia: 1.52KW

Classe di protezione: IP57

Voltaggio: 220 V, 380 V, 240 V, 110 V.

Dimensione interna: 40×50×40 cm (LY-280), 50×60×50 cm (LY-2150), 50×75×60 cm (LY-2225), 60×85×80 cm (LY-2408), 100×100×8

Dimensioni esterne: 93×155×95 cm (LY-280), 100×148×106 cm (LY-2150), 117×166×91 cm (LY-2225), 140×176×101 cm (LY-2408),

Volume: 80 l (LY-280), 150 l (LY-2150), 225 l (LY-2225), 408 l (LY-2408), 800 l (LY-2800)

Intervallo di temperatura: -20°C~150°C (A), -40°C~150°C (B), -60°C~150°C (C), -70°C~150°C (D)

Gamma di umidità: 20-98% RH

Fluttuazione: ±0.5°C ±2.5%UR

Diversione: ±0,5°C-±2°C ±3%UR(>75%UR); ±5%UR (≤75%UR)

Precisione del controllore: ±0.3°C ±2.5%UR

Vento in bicicletta: Ventilatore centrifugo a circolazione forzata dell'aria di tipo a banda larga

Modo di refrigerazione: Refrigerazione di compressione della singola fase

Prodotti refrigeranti: Refrigerante per la protezione ambientale R4O4A USA DuPont (R23+R404)

Evidenziare:

customized temperature humidity chamber

environmental test conditioning cabinet

temperature control environmental chamber

Informazioni di base

Luogo di origine: Guangdong, Cina

Termini di pagamento e spedizione

Galleria

Liyi Customized Environmental Chambers Temperature and Humidity Control Cabinet Conditioning Chamber

Descrizione di prodotto

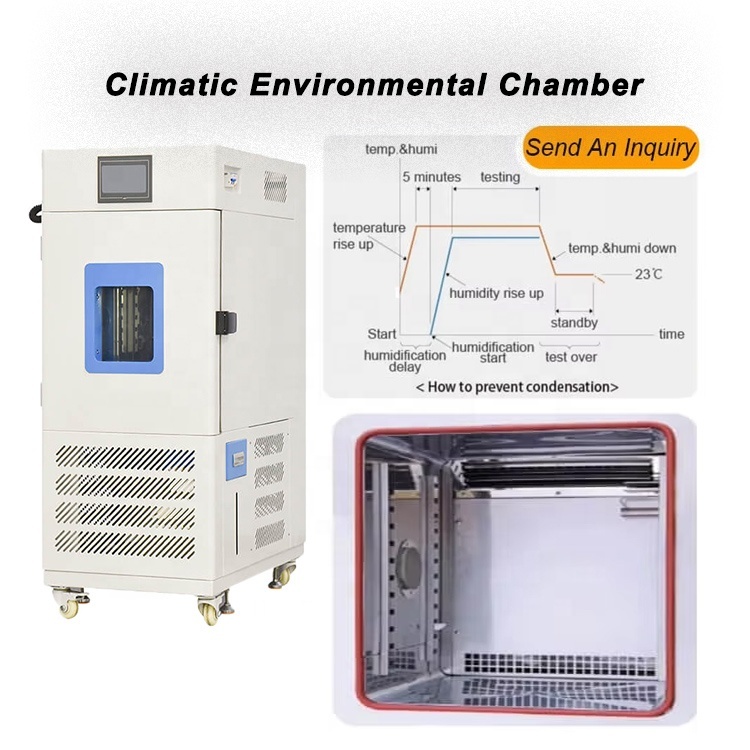

Liyi Customized Environmental Chambers Temperature and Humidity Control Cabinet Conditioning Chamber

The Liyi Customized Environmental Chambers Temperature and Humidity Control Cabinet Conditioning Chamber simulates various environmental conditions for material performance testing. It evaluates resistance to heat, dryness, humidity, and cold to determine material characteristics.

Specifications

Model	LY-280	LY-2150	LY-2225	LY-2408	LY-2800
Inner Size W×H×D(cm)	40×50×40	50×60×50	50×75×60	60×85×80	100×100×80
Outside Size W×H×D(cm)	93×155×95	100×148×106	117×166×91	140×176×101	170×186×111
Volume (V)	80 L	150L	225L	408L	800L
Temp and Hum Range	A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98%
Function Fluctuation	±0.5°C ±2.5%RH
Deviation	±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller Analytical Accuracy	±0.3°C ±2.5%RH
Wind Cycling Way	Centrifugal fan-broadband type forced air circulation
Refrigeration Way	Single stage compression refrigeration
Refrigerator	French Tecumseh
Refrigerants	R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way	Air-cooled or water-cooled
Heater	Nickel chrome heating wire heater
Humidifier	Semi-closed steam and wet
Water Supplying Way	Automatic cycling water supply

Standard Accessories

1 Observe window(double-deck cavity toughened glass)
1 50mm test hole in the left
1 PL inner chamber lamp
2 clapboards
1 bag of wet and dry bulb
3 fuses
1 power line

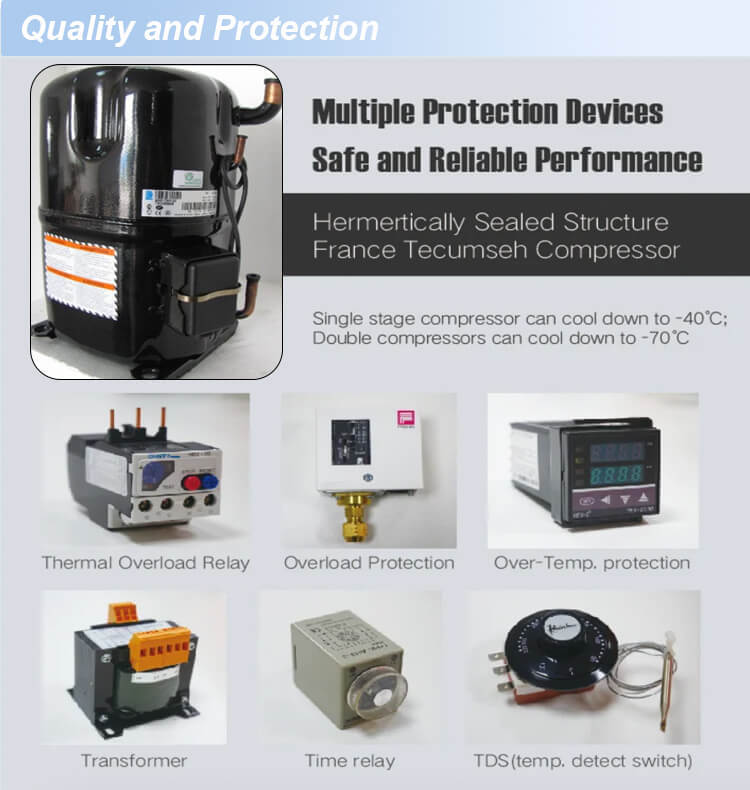

Safety Device

Non-fuse-switch (compressor overload)
Refrigerant high low voltage protection
Over-humidity and temperature protection
Protection switch
Fuse stoppage warning system

Product Details

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and a perfect after-sales service system.

Our company primarily produces simulated environmental testers and plastic/rubber testers for various materials testing industries. Our production base is located in Dongguan, Guangdong province, China - the country's manufacturing center. To better serve our customers in terms of reducing costs and early delivery, we established an office in Kunshan, Jiangsu province in 2005 for Eastern China marketing and servicing.

Liyi serves customers from more than 150 countries and regions. We are committed to cooperating with dealers worldwide to offer better service. Our mission is to help every customer establish testing labs to ensure product quality.

We continue to develop, innovate, and maintain integrity, combining international testing standards with specific customer demands to establish a new banner in the Chinese testing industry.

FAQ

1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional and largest manufacturers of Environmental Chambers, Industrial Ovens, Universal Tensile Testers, UV Aging Test Chambers, Industrial Muffle Furnaces, Paper Packing Testers, Plastic Rubber Testers, Adhesive testers and other testing equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation.

If your machine isn't working, you can email or call us. We'll diagnose the problem through conversation or video chat if necessary, and provide a solution within 24 to 48 hours.

2. What's the delivery term?

For standard machines in stock, we can ship immediately. For out-of-stock standard machines, delivery typically takes 15-20 working days after deposit receipt. We can make special arrangements for urgent needs.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

4. How can I install and use the machine?

After ordering, we'll send an English operation video via email. Most machines ship fully assembled - just connect the power cable to begin use. If needed, we can assist with on-site installation.
